Diesel Genset, Engine power unit and Spare parts
info@mastpower.com

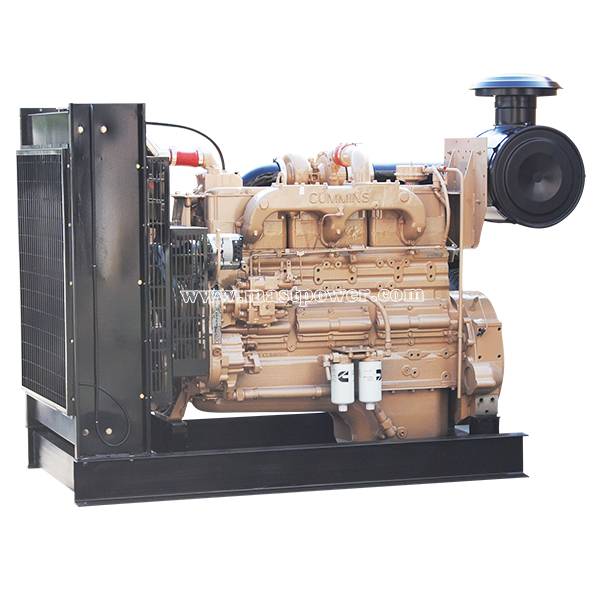

| Model | NT855-P360 |
|---|---|
| Power | 242kw/1800rpm(max. power) |
| Displacement | 14L |
| Bore * Stroke | 140mm*152mm |
| Fuel System | PT pump |
| Starting Method | Electric Start |
Cummins Pump Engine widely used in fields such as firefighting, municipal administration, petrochemical, agriculture, irrigation, water pump, hydraulic pump, etc.
There are options of mechanical pump engines like 4B3.9, 6B5.9, 6C8.3, 6L8.9, N855, K19, K38, and electronic control pump engines like QSB3.9, QSB5.9, QSB6.7, QSL8.9, QSZ13, with HPCR (high pressure common rail) fuel system.
| Model | Power | Peak Torque |
|---|---|---|
| 4BT3.9-P50 | 36kw/1500rpm | 229N.m/1500rpm |
| 4BT3.9-P55 | 40kw/1800rpm | 212N.m/1800rpm |
| 4BTA3.9-P80 | 58kw/1500rpm | 369N.m/1500rpm |
| 4BTA3.9-P90 | 67kw/1800rpm | 355N.m/1800rpm |
| 4BTA3.9-P95 | 70kw/1500rpm | 446N.m/1500rpm |
| 4BTA3.9-P110 | 80kw/1800rpm | 424N.m/1800rpm |
| 6BT5.9-P130 | 96kw/1500rpm | 611N.m/1500rpm |
| 6BT5.9-P160 | 115kw/1800rpm | 610N.m/1800rpm |
| 6BTAA5.9-P160 | 120kw/1500rpm | 764N.m/1500rpm |
| 6BTAA5.9-P180 | 132kw/1800rpm | 700N.m/1800rpm |
| 6CTA8.3-P220 | 163kw/1500rpm | 1038N.m/1500rpm |
| 6CTA8.3-P230 | 170kw/1800rpm | 902N.m/1800rpm |
| 6CTAA8.3-P250 | 183kw/1500rpm | 1165N.m/1500rpm |
| 6CTAA8.3-P260 | 190kw/1800rpm | 1008N.m/1800rpm |
| 6LTAA8.9-P310 | 230kw/1500rpm | 1464N.m/1500rpm |
| 6LTAA8.9-P340 | 255kw/1800rpm | 1353N.m/1800rpm |
| QSB3.9-P50 | 36kw/2900rpm | 300N.m/1100rpm |
| QSB3.9-P80 | 60kw/2900rpm | 360N.m/1200rpm |
| QSB3.9-P80 | 63kw/1500rpm | 401N.m/1500rpm |
| QSB3.9-P110 | 79kw/1500rpm | 503N.m/1500rpm |
| QSB3.9-P115 | 89kw/2900rpm | 380N.m/1800rpm |
| QSB5.9-P130 | 96kw/1500rpm | 611N.m/1500rpm |
| QSB5.9-P160 | 120kw/1500rpm | 764N.m/1500rpm |
| QSB6.7-P160 | 118kw/2900rpm | 760N.m/1400rpm |
| QSB6.7-P200 | 147kw/2900rpm | 760N.m/1800rpm |
| QSB6.7-P230 | 170kw/2900rpm | 760N.m/1900rpm |
| QSL8.9-P280 | 206kw/1500rpm | |
| QSL8.9-P320 | 235kw/1500rpm | |
| QSZ13-P550 | 410kw/1500rpm | 2600N.m/1500rpm |
| QSZ13-P550 | 410kw/1800rpm | 2600N.m/1500rpm |
| Model | Power | Peak Torque |
|---|---|---|
| NT855-P270 | 201kw/1800rpm | 1120N.m/1500rpm |
| NT855-P300 | 224kw/1500rpm(max. power) | |
| NT855-P300 | 224kw/1800rpm(max. power) | |
| NTA855-P360 | 269kw/2100rpm | 1464N.m/1400rpm |
| NT855-P360 | 242kw/1800rpm(max. power) | |
| NTA885-P400 | 298kw/2100rpm | 1627N.m/1400rpm |
| NTA855-P400 | 298kw/1500rpm(max. power) | |
| NT855-P400 | 298kw/1800rpm(max. power) | |
| NTA855-P450 | 336kw/1800rpm(max. power) | |
| NTA855-P450 | 317kw/1800rpm | 1763N.m/1400rpm |
| NTA855-P470 | 351kw/1500rpm(max. power) | |
| NTA855-P500 | 373kw/1800rpm(max. power) | |
| KTA19-P500 | 373kw/1500rpm(max. power) | |
| KTA19-P500 | 373kw/1800rpm | 2138N.m/1500rpm |
| KTA19-P525 | 392kw/2100rpm | 2136N.m/1500rpm |
| KTA19-P600 | 448kw/2100rpm | 2237N.m/1500rpm |
| KTA19-P600 | 447kw/1800rpm | 2490N.m/1400rpm |
| KTA19-P600 | 448kw/1500rpm(max. power) | |
| KTA19-P600 | 448kw/1800rpm(max. power) | |
| KTA19-P680 | 507kw/1500rpm(max. power) | |
| KTA19-P700 | 522kw/1800rpm(max. power) | |
| KTA19-P750 | 559kw/1800rpm(max. power) | |
| KT38-P780 | 537kw/1500rpm | 3481N.m/1300rpm |
| KT38-P780 | 582kw/1800rpm | 3481N.m/1300rpm |
| KT38-P830 | 619kw/1500rpm(max. power) | |
| KTA38-P980 | 731kw/1500rpm(max. power) | |
| KT38-P1000 | 746kw/1800rpm(max. power) | |
| KTA38-P1200rpm | 895kw/1800rpm(max. power) | |
| KTA38-P1300rpm | 970kw/1500rpm(max. power) | |
| KTA38-P1400rpm | 1045kw/1800rpm(max. power) |
