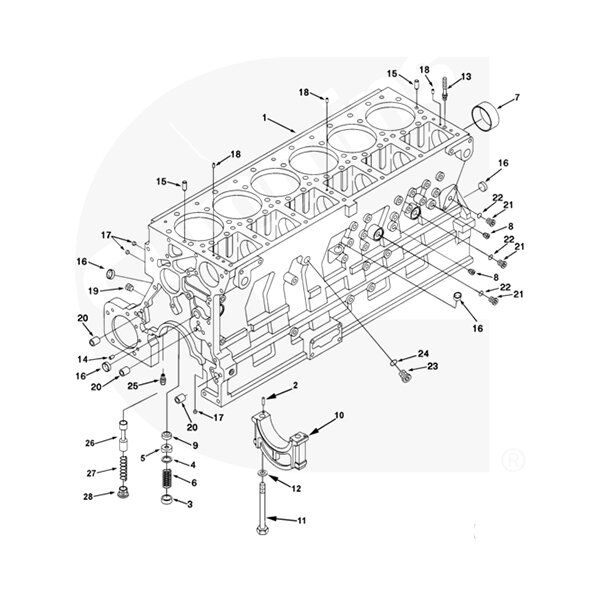

M11-C300 SO20217 Parts Catalogue
| Parts No | Parts Name | |
|---|---|---|
| 3046203 | Pulley, Accessory Drive | |
| 4913701 | Dataplate | |
| 3803703 | Kit, Cylinder Liner | |
| 3073707 | Crankshaft, Engine | |
| 4906948 | Housing, Gear | |
| 3328630 | Assy, Cam Follower Lever | |
| 3801150 | Set, Main Bearing | |
| 3084532 | Assy, Idler Gear | |
| 4060394 | Block, Cylinder | |
| 144044 | Hose, Plain | |
| 107460 | Clip | |
| 3819475 | Tube, Breather | |
| 3037626 | Hose, Elbow | |
| 140312 | Clamp, T Bolt | |
| 140313 | Clamp, T Bolt | |
| 3892978 | Hose, Flexible | |
| 3047440 | Compressor, Air | |
| CP2032 | Air Compressor | |
| 3018151 | Rod, Compressor Connecting | |
| 3558653 | Crankcase, Compressor | |
| 3161942 | Damper, Vibration | |
| 3819407 | Pulley, Crankshaft | |
| 4298595 | Adapter, Hydraulic Pump | |
| 3896045 | Shaft | |
| 4903443 | Plug, Threaded | |
| 3896046 | Support, Accessory Drive | |
| 3041048 | Gear & Shaft | |
| S 3193 | Pin, Groove | |
| 3084583 | Spacer, Rocker Lever Cover | |
| 3613256 | Cover, Protective | |
| 3871519 | Brake, Engine | |
| 3871520 | Brake, Engine | |
| 3335550 | Thermostat | |
| 3821836 | Link, Adjusting | |
| 3883158 | Support, Alternator | |
| 3046204 | Pulley, Alternator | |
| 3017506 | Screw, Hexagon Head Cap | |
| 3037425 | Belt, V Ribbed | |
| 3819498 | Support, Front Engine | |
| 3046206 | Pulley, Fan | |
| 3821534 | Tube, Air Fuel | |
| 3315843 | Separator, Fuel Water | |
| 3899388 | Spacer, Mounting | |
| 4914093 | Bracket, Filter | |
| 129859 | Elbow, Male Union | |
| 4060813 | Housing, Flywheel | |
| 212672 | Fan, Engine | |
| 3069103 | Gasket, Fuel Pump | |
| 3893850 | Brace, Fuel Pump | |
| 3600764 | Tube, Fuel Drain | |
| 4023087 | Tube, Fuel Supply | |
| 3895701 | Hose, Flexible | |
| 4060816 | Flywheel | |
| 4060814 | Gear, Flywheel Ring | |
| 4060815 | Flywheel | |
| 4070537 | Kit, Gear Cover | |
| 181461 | Governor, Air Compressor | |
| 3883586 | Bracket, Lifting | |
| 3896347 | Bracket, Lifting | |
| 3102571 | Retainer, Connection | |
| 4975879 | Cooler, Oil | |
| 4914502 | Head, Lub Oil Filter | |
| 3899699 | Head, Lub Oil Filter | |
| 3401544 | Element, Lub Oil Filter | |
| 4025950 | Decal | |
| 3895756 | Pump, Lubricating Oil | |
| 4003957 | Cover, Lub Oil Pump | |
| 4003961 | Gear and Shaft | |
| 3820795 | Gear, Lub Oil Pumping | |
| 3401223 | Shaft, Lub Oil Pump | |
| 4003960 | Body, Lubricating Oil Pump | |
| 4003933 | Bushing | |
| 4003959 | Body, Lubricating Oil Pump | |
| 3010146 | Spring, Compression | |
| 3821725 | Plug, Retainer |
| Parts No | Parts Name |
|---|---|
| 3401290 | Gasket, Oil Pan |
| 4952770 | Pan, Oil TLA |
| 3882346 | Tube, Lub Oil Transfer |
| 3080708 | Nozzle, Piston Cooling |
| 4004556 | Camshaft |
| 3417775 | Gear, Camshaft |
| 3899910 | Manifold, Oil |
| 3899450 | Assembly, Connecting Rod |
| 3803976 | Kit, Engine Piston |
| 3896031 | Piston, Engine TLA |
| 3411821 | Injector |
| 3070130 | Adapter, Oil Control Valve |
| 3080416 | Sensor, Pressure |
| 3899972 | Hose, Flexible |
| 3900630 | Screw, Hex Flange Head Cap |
| 4010191 | Adapter, Oil Control Valve |
| 4010194 | Valve, Fuel Shutoff |
| 129768 | Spring, Valve |
| 129839 | Shield, Shutoff Valve |
| 129888 | Seal, Rectangular Ring |
| 196057 | Disc, Valve |
| 3034451 | Housing, Actuator |
| 3054608 | Solenoid |
| 3056009 | Disc, Actuator |
| 3065944 | Screw, Captive Washer Cap |
| 4010196 | Body, Fuel Shutoff Valve |
| 3067341 | Shaft, Shutoff Valve |
| 3279794 | Seal, O Ring |
| 4010197 | Body, Shutoff Valve |
| 67684 | Washer, Plain |
| 3883324 | Pulley, Accessory Drive |
| 3064600 | Assembly, Rocker Lever |
| 3064602 | Lever, Rocker |
| 3066644 | Screw, Slotted Set |
| 3067941 | Plug, Ball |
| 3019733 | Bushing |
| 3064597 | Assembly, Rocker Lever |
| 3064599 | Lever, Rocker |
| 3066257 | Nut, Regular Hexagon Jam |
| 3066644 | Screw, Slotted Set |
| 3067941 | Plug, Ball |
| 3019733 | Bushing |
| 3068350 | Assembly, Rocker Lever |
| 3064605 | Lever, Rocker |
| 3066257 | Nut, Regular Hexagon Jam |
| 3066644 | Screw, Slotted Set |
| 3067941 | Plug, Ball |
| 3019733 | Bushing |
| 3068351 | Assembly, Rocker Lever |
| 3064608 | Lever, Rocker |
| 3066257 | Nut, Regular Hexagon Jam |
| 3066644 | Screw, Slotted Set |
| 3067941 | Plug, Ball |
| 3019733 | Bushing |
| 3069020 | Lever, Rocker (tla) |
| 3896642 | Lever, Rocker |
| 3066644 | Screw, Slotted Set |
| 3067941 | Plug, Ball |
| 3067871 | Bushing |
| 3066643 | Socket, Tappet |
| 3803166 | Shaft, Rocker Lever |
| 3820750 | Shaft, Rocker Lever |
| 3019630 | Plug, Drive |
| 3070175 | Crosshead, Valve |
| 3892654 | Support, Rocker Lever |
| 3883241 | Housing, Rocker Lever |
| 3896697 | Gasket, Rkr Lever Housing |
| 3892652 | Support, Rocker Lever |
| 3892653 | Support, Rocker Lever |
| 3050692 | Switch, Magnetic |
| 67012 1 | Spacer, Fan |
| 3018924 | Wire, Ground |
| 3102920 | Motor, Starting |
| 3084656 | Manifold, Exhaust |
| 3067406 | Manifold, Exhaust |
| Parts No | Parts Name | |
|---|---|---|
| 3819760 | Gasket, Exhaust Manifold | |
| 3818124 | Spacer, Mounting | |
| 3818125 | Spacer, Mounting | |
| 3818127 | Plate, Clamping | |
| 3801801 | Aftercooler | |
| 3821695 | Aftercooler | |
| 3069786 | Gasket, Intake Manifold | |
| 3025152 | Hose, Plain | |
| 3028384 | Plate, Cover | |
| 3821643 | Connection, Air Intake | |
| 3895455 | Housing, Thermostat | |
| 3895453 | Housing, Thermostat | |
| 186780 | Seal, Thermostat | |
| 3076794 | Support, Thm Housing | |
| 3820667 | Hose, Plain | |
| 3893692 | Gasket, Support | |
| 3008690 | Clamp, Hose | |
| 3048296 | Lever, Throttle | |
| S 600 | Washer, Lock | |
| 70704 | Washer, Plain | |
| 3047340 | Elbow, Male Union | |
| 3883966 | Union, Male | |
| 3899343 | Gasket, Turbocharger | |
| 3899412 | Hose, Flexible | |
| 3027449 | Tube, Aftercooler | |
| 3064941 | Nipple, Plain Hexagon | |
| 3401062 | Tube, Aftercooler | |
| 3819787 | Hose, Flexible | |
| 3820666 | Hose, Plain | |
| 3818849 | Shaft, Shutoff Valve | |
| 3042327 | Washer, Plain | |
| 3026156 | Washer, Plain | |
| 3821853 | Housing, Engine Heater | |
| 3893690 | Gasket, Heater Housing | |
| 4083006 | Gasket, Wtr Header Cover | |
| 212013 | Head, Fuel Filter | |
| 3315843 | Separator, Fuel Water | |
| AS10020 SS | Hose | |
| 553856 | Gasket, Oil Drain | |
| 4060813 | Housing, Flywheel | |
| S 604 | Washer, Lock | |
| 212672 | Fan, Engine | |
| 3069103 | Gasket, Fuel Pump | |
| 4060816 | Flywheel | |
| 4060814 | Gear, Flywheel Ring | |
| 4060815 | Flywheel | |
| 4070537 | Kit, Gear Cover | |
| 181461 | Governor, Air Compressor | |
| S 605 | Washer, Lock | |
| 127184 | Washer, Plain | |
| 185848 | Gasket, Air Compressor | |
| 3401544 | Element, Lub Oil Filter | |
| 3895756 | Pump, Lubricating Oil | |
| 4003950 | Pump, Lubricating Oil | |
| 3401290 | Gasket, Oil Pan | |
| 3080708 | Nozzle, Piston Cooling | |
| 4004556 | Camshaft | |
| 3896335 | Support, Camshaft Thrust | |
| 3417775 | Gear, Camshaft | |
| 3899910 | Manifold, Oil | |
| 3899450 | Assembly, Connecting Rod | |
| 3803976 | Kit, Engine Piston | |
| 3896031 | Piston, Engine TLA | |
| 3411821 | Injector | |
| 3883324 | Pulley, Accessory Drive | |
| 3064600 | Assembly, Rocker Lever | |
| 3050692 | Switch, Magnetic | |
| 67012 1 | Spacer, Fan | |
| 3102920 | Motor, Starting | |
| 3801801 | Aftercooler | |
| 3895455 | Housing, Thermostat | |
| 3048296 | Lever, Throttle | |
| 3819767 | Head, Corrosion Resistor | |
| 3329062 | Housing, Engine Heater TLA | |
| 3803403 | Assembly, Water Pump |
